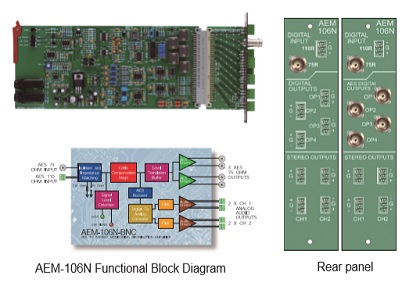

AEM-106N AES 디지털 오디오 신호의 분배와 모니터링이 가능한 고품질의 방송용 모듈 로서 Rear panel은 AEM-106N-PHX(balanced 110ohms)와 AEM-106NBNC(Unbalanced 75 ohms) 중 선택이 가능하다. 입력은 최고 200m Balanced 110 ohms 케이블과 900m의 고품질 동축 케이블의 자동 Equalization이 되며, AES 입력과 출력 절연 전압은 안정성을 고려해 500V DC로 설계되었다. 4개의 AES 디지털 출력과 3개(후면 2개, 전면 1개)의 Stereo balanced analog 출력이 있으며, 출력레벨은 0dBu이고 이 레벨로부터 가변의 범위는 ±6dB이다. |
Features
- Automatic input cable compensation - 4 × 110 ohm outputs - 3 stereo 18 bit monitoring outputs (1 to front) - Data present LED indication - Low signal LED warning - Selectable 75 or 110 ohm input |
Ordering Information
• AEM-106N-PHX Euromodule with Phoenix/BNC rear connector assembly and mounting hardware. • AEM-106N-BNC Euromodule with BNC rear connector assembly and mounting hardware • WMF-310S 3RU module frame with single power supply • WMF-310D 3RU module frame with dual power supply • WMF-102S 1RU module frame with single power supply |
Technical Specification
Digital Formats |
Digital audio | 110 ohms and 75 ohms AES/EBU formats supported |
Digital Audio Input |
Number Impedance Connectors | 2 Unbalanced 75 ohm and balanced 110 ohm both terminating. BNC for 75 ohm. 3 Pin Phoenix type for 110 ohm. |
Digital Audio Output |
Number Impedance Connectors Level Rise and fall time | 4 Balanced 110 ohm 3 pin Phoenix type 3.5Vp-p for 110 ohm < 20ns |
Analog Audio Input | Number Impedance Frequency response Signal to noise > Interchannel crosstalk Distortion | 3 stereo. 2 to rear panel and 1 monitoring to front panel. 45 ohms ±0.3dB, 10Hz to 20kHz -78dB (A Weighted with idle channel, digital input all zeros) > 70dB at 1kHz, WRT -20dBv <0.03% total harmonic distortion |
Electrical | Power supply input | +8V, +15V and -15V DC regulated. |
Mechanical | Euromodule size Width | 220mm × 100mm 6HP |
