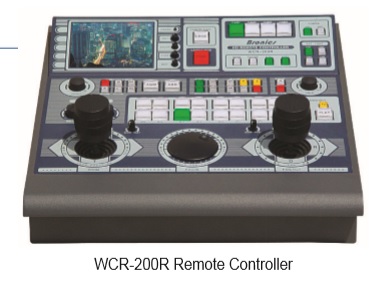

WCR-200 Series 그동안 인기리에 판매되고 있던 Analog 파노라마 카메라 시스템이 최근 방송국 시설이 HD(High Definition) 고품질 디지털 방송으로 변환하기 시작하면서 여러 방송사들의 주문 요청에 따라 WCR-200HD) 시스템을 신제품으로 제작하여 납품하고 있다. 카메라는 최근에 개발된 소형 HD카메라(수요자가 직접 선택)를 내장하고 카메라의 Video Gain, Pedestal Level, Zoom, Focus 등의 기능들을 원거리에서도 조정할 수 있도록 원격조정장치 WCR-200R도 함께 개발되었다. 외부의 열로부터 차폐된 카메라 Housing은 오염물질의 유입을 막고 Cooling 장치(여름철)와 Heating 장치(겨울철)가 있어 장비를 보호하며, 렌즈 보호용 유리창에는 Wiper 기능과 Washer 기능들의 조정도 함께 할 수 있어 아주 편리하게 사용하도록 고안되었다. |
Features
- Max. 350。 회전 파노라마HD Camera System - 4대의 파노라마 카메라 원격조정 가능 - CCU 기능 원격조정 가능 - 32 Scene Memory Function(16 scene 2 Page) - Joy Stick PAN/TILT Control System - Lens Zoom, Focus 원격조정 가능 - Heating System in the Housing(겨울철) - Cooling System in the Housing(여름철)
|
Ordering Information

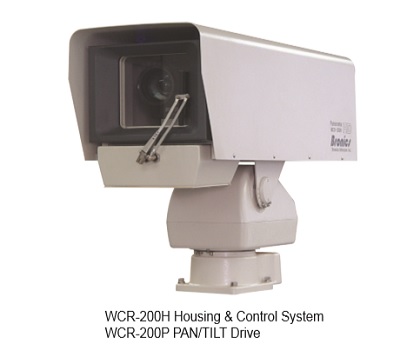

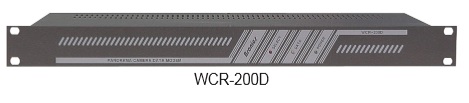

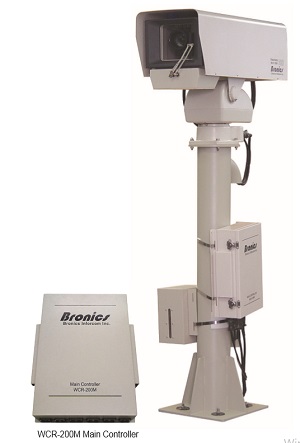

• HD Camera and Lens (Option:사급) - HDC-X300 / HSs 18×5.5BMD-D18 - HDL-45A / DK-H32 HAs 18×7.6BMD-DSE HA 23×7.6BERD HJ 22ex×7.6B IASE • WCR-200H Housing & Control • WCR-200M Main Controller • WCR-200P PAN/TILT Drive • WCR-200T Camera Pole • WCR-200R Remote Controller • WCR-200D Data Modem |
Technical Specification
Camera CCU Control Function |
- Video Output - Gain Select - Auto Balance - Master Pedestal Adjust - Red/Blue Pedestal Adjust - Red Gain Adjust - Blue Gain Adjust - IRIS Control - IRIS Level Adjust - Shutter Control - CCU Lock - Power Control | Camera Video, Color Bar 0dB, G1, G2 White & Black Digital VR Digital VR Digital VR Digital VR Auto/Manual Digital VR (Manual Mode) Off, Up, Down Lock/Release On/Off |
Camera Lens Control Function |
Zoom Function - Zoom Control - Speed Control - Control Data(Position) Focus Function - Focus Control - Control Data(Position) |
Joy Stick
12bit
Digital VR 12bit |
PAN/TILT Drive |
PAN Function - Pan Control - Speed Control - Control range - Control Data(Position) TILT Function - Tilt Control - Control Range Control Data(Position) |
Joystick
Left, Right Max. 350。 16bit
Joystick Up, Down Max. 90。 16 bit |
PANORAMA CAMERA DATA MODEM | - 본 System은 제어회선을 음성급 전용회선 사용시 필요 - Data speed 1,200bps - 사용회선 2 Wire 음성급 전용회선 - 단방향통신 ※본장비 사용시 Zoom, Focus, Pan, Position 표시는 불가 ※본장비는 TX 용으로 WCR-200R 에 접속되며 RX Board는 WCR-200M에 내장된다. | |
Scene Memory | - Function - Memory Data - Capacity - Play Control | Memory, Page1, Page2, Play Zoom, Focus, Pan, Tilt Position 1~16 Memory per Page 1~2 Page(Total 32 Memory/Position) Any Memory (1~32 Memory Position) |
Housing | - Control - Aux Control - Temperature Control - Temperature Display Function - Temperature Proof | Wiper & Wash 2 CH, On/Off Auto, Heating & Cooling
Sun Shield |
Control Line | - Line - Line 수 - Data Speed - 여러 대의 Remote접속 가능 (Busy status check) | RS-485(Shield, Twist 1 Pair) 4Line(CAM1, CAM2, CAM3, CAM4) 9,600bps/1,200bps
|
Sub Control (주변장비 제어) | - Type - Output Channel - Control | GPI(Photocoupler)Output 4CH On/Off |
Video Monitor | - 4˝ Color LCD Monitor - Video Input - Control |
HD/SD - SDI Sharpness, Contrast, Bright |
|
|
