VDA-111N VDA-111N은 50MHz까지의 주파수 대역폭을 갖는 고급형 VDA이다. 특이한 입력신호가 들어 오더라도 유입되는 Hum 신호를 차단하는 기능을 갖고 있으며, 어떠한 조건하에서도 제 성능을 발휘한다. 모두 10개의 출력신호를 제공하고, 모듈 전면에 하나의 출력신호를 보내 모니터링할 수 있다. 모듈 전면에서 케이블 길이 300m까지 전 주파수 대역을 등화시키 주는 Multiturn Pot 볼륨이 있으며 Gain조정은 ±6dB까지 가능하다. Option으로 delay 모듈을 사용하면 |

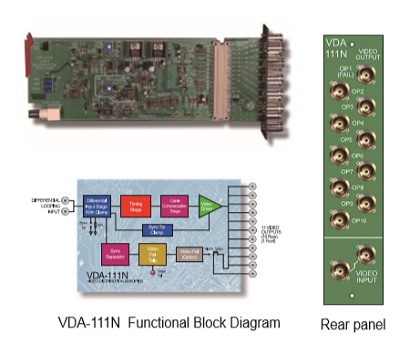

Features
- 11 outputs(10 to the rear & 1 to the front) - 30MHz bandwidth - <0.11。differential phase and <0.1% differential gain - Sync tip clamp 0r APL mode delectable - Video fail indication |
Ordering Information
• VDA-111N Video Distribution Amplifier • WMF-310S 3RU module frame with single power supply • WMF-310D 3RU module frame with dual power supply • WMF-102S 1RU module frame with single power |
Technical Specification
Input |
Connector Type Retutn Loss Common Mode Rejection Level | 2x BNC, 75Ω loop through Differential hum reducing >44 dB to 5 MHz >60 dB 50Hz to 5 MHz 1V p-p |
Output |
Connector Return Loss Output Isolation Gain Match | 11x BNC, 75Ω source fed >45 dB >40 dB to 5 MHz ±0.05 dB across all output |
Performance |
Frequency Res. Differential Gain Differential Phase Line Tilt Field Tilt Gain Range Timing Range Cable Compensation | ±0.02dB to 10 MHz <0.1% at 4.43 MHz <0.11。at 4.43 MHx <0.5% <0.5% ±6 dB 20˚ at 4.43 MHz Up to 300m 10 Hz to 5 MHz |
Mechanical | Euromodule size | 220(W)×100(H)mm |
