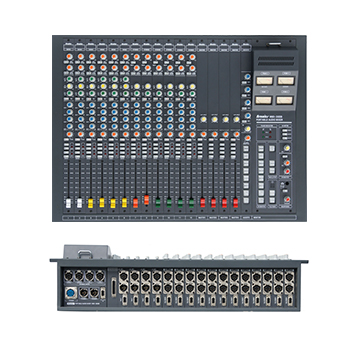

WMX-2000M 기능과 성능을 방송용(Broadcasting mixing system)으로 설계 제작되어 DJ room, 더빙, 편집 스튜디오 및 중계차용으로 사용하기 적합한 Portable형 Audio mixer이다. VCA(Voltage Control Amplifier) fader로 설계되어 풍부하고 여유있는 음질을 제공한다. 조절용 모든 가변 볼륨은 Conductive 또는 Cermet 재질로 되어 있고 주요 기능 스위치는 LED형 Lamp를 수용하고 있다. 프로그램 입, 출력은 Transformer balance형이다. 모듈형으로 되어 있어 유지보수가 편리하며 전원은 Dual형으로 안정성을 보장한다. |
Features
|
- Mono & stereo module - 3 Band EQ / Mono - 2 Band EQ / Stereo - 48V phantom power - 4 AUX out/pre. post - VCA fader - Tally output - 4 PGM out w/comp limiter - 4 VU meter - Phase indicators - Talk back / OSC - Studio monitor - 2 External input - Head phone monitoring - Internal PFL speaker Dual power supply |
Ordering Information
• Mono module (1 ~ 24 Channel)
• Stereo module (1 ~ 24 Channel)
• Master module (2 ~ 4 Channel)

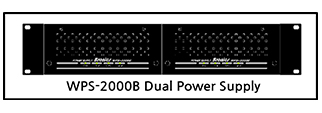

• Frame • Dual power supply (2RU type)
|
Technical Specification
|
MONO MODULE |
| MIC input level controller 48V phantom power on/off switch Line input level controller MIC/Line select switch 3 Band equalizer EQ on/off switch 4 Channel AUX send/pre or post Panorama potentionmeter, on/off switch Prefader listening of the signal Mute switch & remote control port Master selector for 4 master bus VCA fader control/tally output |
|
STEREO MODULE |
| 2 Line input level controller Phase reverse switch Mono switch High & low band equalizer EQ on/off switch 4 Channel AUX send/pre or post Balance controller, on/off switch Prefader listening of the signal Mute switch & remote control port Master selector for 4 master bus VCA fader control/tally output |
|
MASTER MODULE |
| Comp./limiter controller VCA fader control Tally output |
AUX MASTER / STUDIO MONITOR MODULE |
| 4 AUX master 4 AUX talk back Studio monitor selector : PGM1+2, PGM3+4, AUX1, AUX2, AUX3, AUX4, EXT, ONAIR Studio monitor level control Studio TB level control |
MONITOR MODULE | 4 PGM/AUX VU meter Phase indicator : PGM1+2, PGM3+4 VU meter selector : AUX1/2, AUX3/4, PGM3/4 Monitor selector : PGM1+2, PGM3+4, AUX1, AUX2, AUX3, AUX4, EXT, ONAIR Oscillator : AUX, PGM/OSC On Talkback & internal MIC PFL & level control Headphone monitoring CR Monitor level control & balance control Internal PFL speaker | |
MEASURING PARAMETERS | 0dBu : 0.775V MIC input source impedance : 150 ohms Line input source impedance : 600 ohms Output dummy load : 600 ohms Channel fader is 0dB mark setting | |
INPUTS Microphone input | Level Impedance | -70dBu to -30dBu, 40dB variable gain 1.2 Kohms transformer balanced |
Line input | Level Impedance | Mono input -20dBu to +20dBu, 40dB variable gain Stereo input -10dBu to +10dBu, 20dB Variable Gain 10 Kohms transformer balanced |
PGM OUTPUTS | Level Impedance | +4dBu, normal, +20dBu maximum less than 200 ohms transformer balanced |
AUX | Level Impedance | +4dBu normal, +18dB maximum less than 300 ohms transformer balanced |
| PGM PERFORMANCE | Frequency response
THD
Signal to noise ratio
Equivalent MIC input noise
| MIC input ±1dB, 20Hz to 20KHz LINE input ±0.5dB, 20Hz to 20KHz MIC input 0.1%, 20Hz to 20KHz (Input -60dBu, output 0dBu) Line input 30Hz 0.2%, 20KHz 0.08% 80dB, 20Hz to 20KHz B.W (1 Line to PGM output) -126dB 20Hz to 20KHz B.W (1 MIC to PGM output) |
| COMP LIMITER | Gain Threshold Release Ratio Attack | 0 ~ 20dB Variable -20 ~ 10dBu Variable 0.075 to 1.5secs Variable 1.5 ~ 50 Variable Normal 4msec / Fast 0.2msec |
| Equalizer | Mono Input HF MF LF Stereo Input HF LF
POWER
Dimensions
|
20KHz ±15dB shelving 1KHz ±15dB 20Hz ±15dB shelving
20KHz ±15dB shelving 20Hz ±15dB shelving
8 Channel 570(W)mm 12 Channel 690(W)mm 16 Channel 810(W)mm 24 Channel 1050(W)mm |
|
Note : Specifications are subject to change without notice
|
