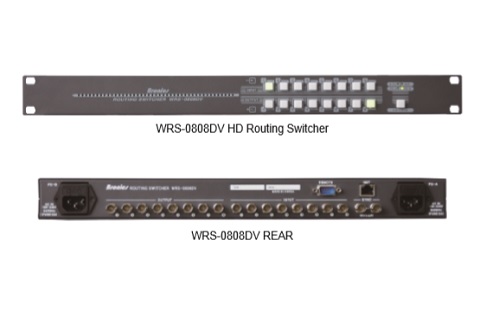

WRS-0808DV (Routing Switcher) 2020/04/13 (10:19)




  WRS-0808DV

  (Routing Switcher)






  본 장비는 입력 8개 HD-SDI 신호와 8개의 출력으로 구성되었다.

  270Mbps에서 1.485Gbps HD신호까지 방송품질로 절체하여

  준다. Cable Equalizing은 SD신호에서는 300m까지, HD신호

  에서는 120m 까지 자동적으로 처리하며, Reclocking에서는

  SD신호와 HD신호를 자동으로 검출하여 선택해준다. 방송사고를

  방지하기 위한 Lock 기능이 있다.







Features

 - Up to 120 meters of 1.485 Gb/s Cable Equalization

 - Up to 300 meters of 270 Mb/s Cable Equalization

 - Up to 8 Output from 8 Input

 - Reclocked Outputs remove accumulated input Jitter

 - Automatic Selection of Data rates

 - Low Signal Indication(270 Mb/s Only)







Technical Specification

Input

Connectors

Return Loss


Cable Equalization

Data Rate

 8x 75Ω, BNC,

 >20dB from 5 MHz to Line Input

 >15dB from 5 MHz to 1.485GHz

 100m at 1.485Gbp

 1.485 Gbps

Output

Connectors

Level


DC Offset

Rise and Fall


 8x 75Ω, BNC Impedance

 800mV p-p ±10% per

 SMPTE 292M

 0.0V ±0.5V

 400ps at 270Mb/s

<220ps at 1.485Gb/s

Performance

Video Format & Data Rates


Processing

 Serial Digital(SDI) @ 270Mb/s

 Serial Digital(HDTV) @ 1.485Gb/s

 Reclocking

General

Operating temperature

Power

Dimensions

 0℃~40℃

 220Volts, 60㎐

 483(W) x 44(H) x 200(D)mm
