NK-RP1
|
Features
|
|
Ordering Information
• NK-RP1/P NK Series Dual Redundant Power Supply, +15 Volt (100W) • NK-RP1/PN NK Series Dual Redundant Power Supply, +/-15 Volt (100W) • NK-RP1-NEG -15 Volt regulator module for NK-RP1/P (50W max) • NK-D12/PN PSU cable for NK-RP1/PN, 1.2m, 9-pin D connector, +/-15 Volt • NK-S12/P PSU cable for NK-RP1/PN, 1.2m, Speakon connector, +15 Volt |
Technical Specification
|
PERFORMANCE |
Input Positive Output Negative Output Maximum Total Output Relative +/- Output | 100 to 240 V @ 1.5A (47 to 63 Hz) + 15 V @ 6.67 A (100W) - 15 V @ 3.33 A (optional) 100W see table below |
|
GENERAL |
On-Board Cooling Dimensions | 2x 4.0cm fans 1RU x 19.0cm deep |
Specifications subject to change without prior notice
Relative +/- Power Output
|
|
POWER DISTRIBUTION (watts) |
|||||||
|
Positive Power |
100 | 90 | 80 | 70 | 60 | 50 | 40 |
|
| Negative Power | 0 | 8.4 | 16.8 | 25.2 | 33.6 | 42 | 50 | |

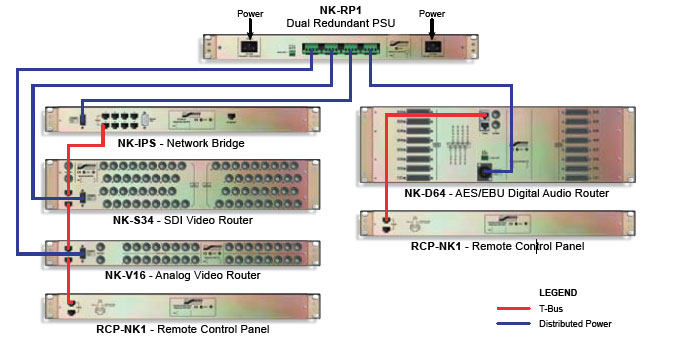

NK-RP1 System Diagram
|
|
