WIT-100 Series 본 장비는 원활한 방송 진행을 위하여 조정실에 Video Monitor와 함께 설치되는 Tally Display System으로 Routing Switcher 및 Video Switcher와 연동되어 각 영상신호의 이름이 변경 되어지며 사용 상태를 녹색, 오렌지색 또는 적색으로 표시하기 위한 장비이다.
|
Features
|
- UMD(Under Monitor Display) tally lamp controller with - management software - Easily change for display characters - Korean, English, Chinese, Japanese, etc) - Select 16×16 LED dot or 5×7 LED dot matrix device - Maximum 128 displays per system (Option 255 display) - RJ-45 connector (Data) for Display - Adjust brightness of each color - Dual power supply (WIT-100C) |
Ordering Information
• WIT-100C Intelligent Tally Controller • Option Modules Data Input Module GPIO Module SMPTE Time Module • WIT-164TI 64CH Tally Data Converter • WIT-162TS Emergency Tally Switcher • WIT-101G GPI I/O Interface
|
Technical Specification
|

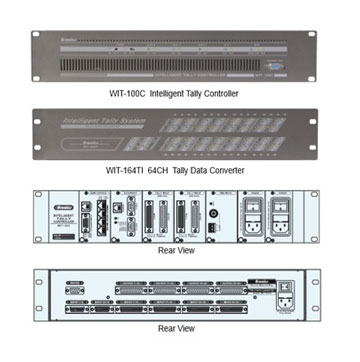

WIT-100C Intelligent Tally controller |
||
|
1) WIT-100C (Frame) |
Main Module Slot Sub Module Slot Power Module Slot Front Config Port Front Power Switch & Dual Color LED Dimensions | 1EA 4EA 2EA RS-232 1EA
2Set 483(W)×88(H)×350(D)mm |
|
2) WIT-100CP (Power Supply Module) |
Dual Power AC Power | 2EA / Frame 85V ~ 264V 50/60HZ(Free Voltage) |

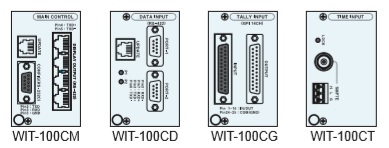

3) WIT-100CM (Main Module) | Display Output Port Configuration Port Firmware Debug Port | 4EA of RS-422/TX, RJ-45 2EA of RS-232, (Dsub-9) 1EA of ICSP |
4) WIT-100CD (Data Input Module, Option) | Communication Port Firmware Debug Port | 2EA of RS-422, (Dsub-9) 1EA of ICSP |
5) WIT-100CG (GPIO Module, Option) | Tally Data Channel Tally Data Input Type Tally Data Output Type | 16CH In & Out Active Low (GND), Voltage Control Isolated Open Collector |
6) WIT-100CT (SMPTE Time Module, Option) | Balance Input Connector Unbalance Input Connector Time Code Type | 1EA of Phoenix Type (3P) 1EA of BNC Type (75ohm) SMPTE/EBU Serial Time Code |
| ||

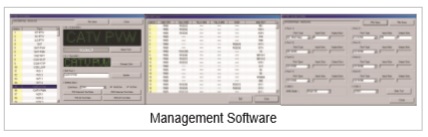

7) Management Software | System Configuration UMD Text Configuration Setup Tally Data Input or Output Setup Routing Switcher Interface & Text Data Windows X |
|
| ||
| WIT-164TI 64CH Tally Data Converter | ||
| 1) Tally Input | Channel Device | 16CH×4 Photocoupler |
| 2) Secondary Tally Input | Channel Device Assig | 8CH×2 Photocoupler CH1 ~8, CH33 ~ 40 |
| 3) Tally Output | Channel Assign Device Type | 16CH×4 Primary Input Photocoupler Isolated Open Collector |
| 4) Data output | Assign Port | [Primary or Secondary] Input 1 Port, RS-422, (Dsub-9) |
| 5) General | Operating Temp. Power Dimensions | 0℃ ~ 40℃ Free voltage(AC 85~264V) 50/60HZ 483(W)×88(H)×350(D)mm |
